TagList Editor

The TagList Editor offers the possibility to locate working points and areas in the layout and to change their nature.

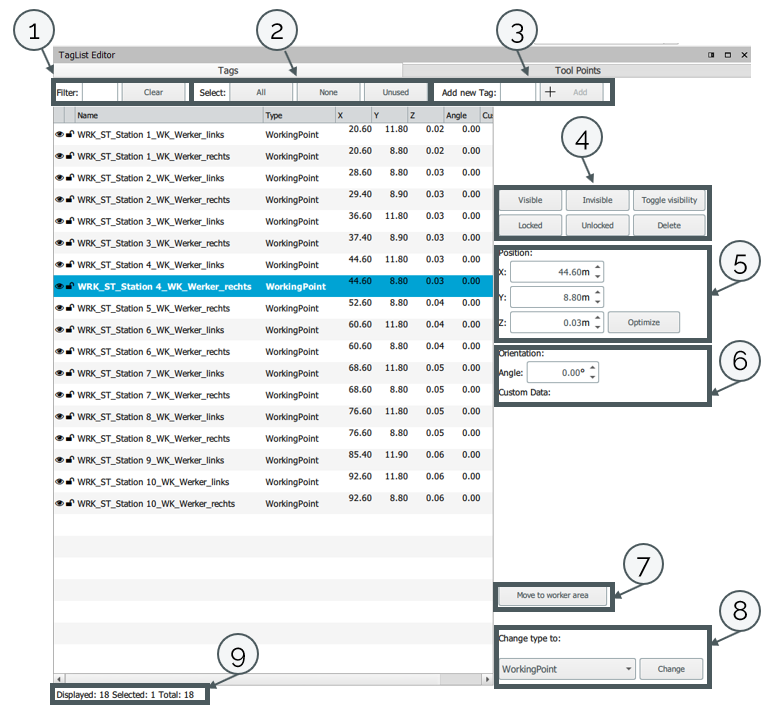

The following settings are possible under "Tags" and can be made for worker points.

1	Here you can search for tags or delete the filter.
2	Here you can select by tags. There is the possibility to select all or no tags or unused tags.
3	New tags can be added here. Under (8) the type of the tag can be changed.
4	Here existing tags can be made visible, invisible, locked, unlocked or deleted. In addition, there is the possibility to show or hide tags via the eye or via the lock on the right side, in the enumeration, as well as to lock or unlock them. To do this, an item must be selected in the left-hand listing.
5	Here the position of the tag can be changed. Via Optimize the changes are applied.
6	Here the angle of the tool points can be changed.
7	With "Move to worker area" the selected tag is placed in the center of the worker area. "Move to worker area" is only possible for workingpoints and workerpoints. The coordinates are adjusted automatically.
8	Here you can select the type of the tag. A distinction is made between: ZoneAnchor WorkingPoint WorkerPoint BuildingAxis
9	Here is an overview of the number of selected tags and the total number.

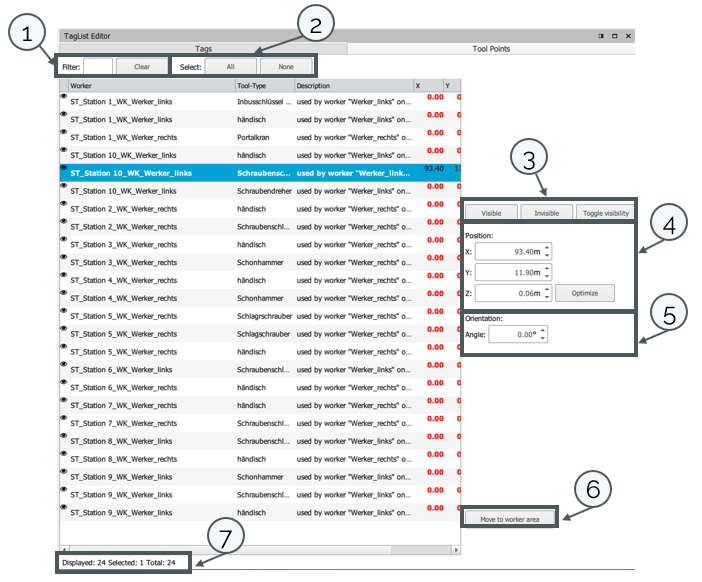

The following settings are possible under "Tool Points" and can be made for tools.

1	Here you can search for tools or delete the filter.
2	Tools can be selected here. There is the possibility to select all or no tools.
3	Here existing tools can be made visible or invisible. In addition, there is the possibility to show and hide tools via the eye on the right side, in the enumeration.
4	The position of the tool can be changed here. The changes are applied via Optimize.
5	Here you can change the angle of the tools.
6	With "Move to worker area" the selected tool is placed in the center of the worker area. The coordinates are automatically adjusted.
7	Here is an overview of the number of selected tags and the total number.
