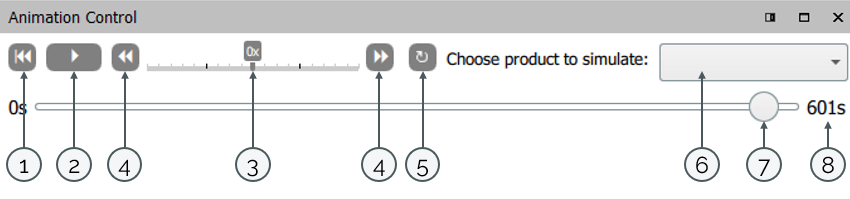

Animation Control

Select Animation Control from the Animation menu bar. Here you can control the worker simulation.

1	The play button starts the simulation. You will see the production process from the worker's point of view in the layout.
2	The play button starts the simulation. You can see the production process from the workers view in the layout.
3	The playback speed can be adjusted via the slider.
4	Forward and rewind keys (also) change the playback speed. The value 1x corresponds to the normal time. Far right 32x speed, far left 32x speed backwards. The selection window ranges from 1/8x to 32x.
5	If you press the Repeat Simulation button, the simulation will be played in an infinite loop.
6	To start a simulation, select the product you want to view in the drop-down window. The simulation of the workers and worker paths will now be displayed.
7	The slider is moving on the timeline and can be dragged back and forth manually.
8	This is the maximum duration of the cycle time, which will also go beyond the specified cycle time if the times in the worker Gantt go beyond it.
