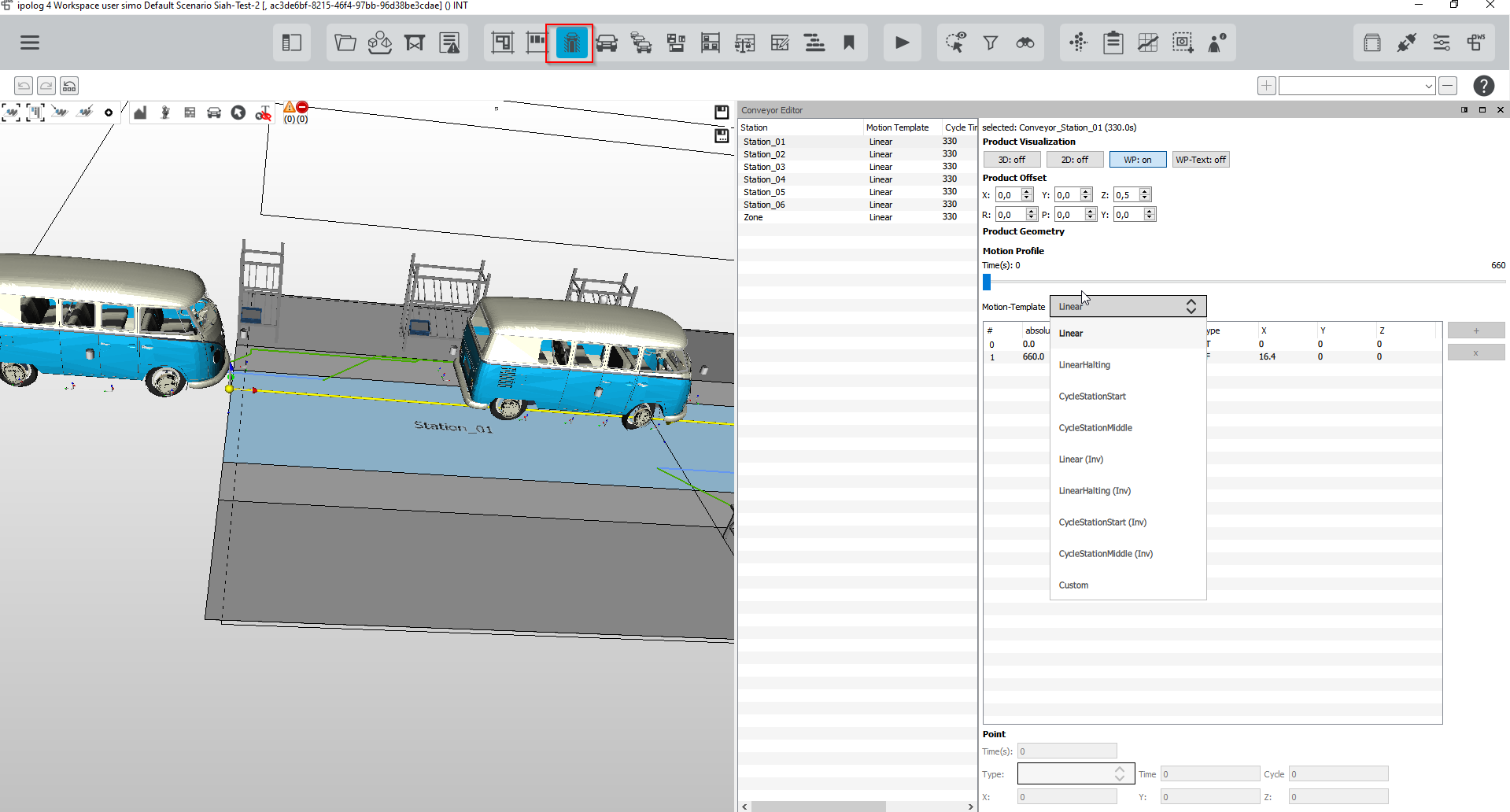

Conveyor Editor

Conveyer Editor is a tool to define the movement profile of product conveyance per station.

With Multiselect, the settings can be defined for several stations.

Product visualization

1. 3D on / off: show or hide products in the 3D scene
2. 2D on / off: show or hide blocking/shadow area of the product
3. WP on / off: show or hide working points on the product
4. WO text on / off: show or hide texts of the working points on the product

Product offset (positioning)

1. in x-direction from the coordinate origin of the product
2. in y-direction from the coordinate origin of the product
3. in z-direction from the coordinate origin of the product
4. Rotation and inclination

Motion Profile

• Linear:
  • Linear motion over two station lengths and two beats, starting from the station origin, used to simulate across stations.
• LinearHalting
  • Linear movement through the station and stops at the end of the station
• CycleStationStart
• CycleStationMiddle
• Linear (Inv)
  • identical to Linear, but starts at the geometric station end, moving in the direction of the previous station
• LinearHalting (Inv)
  • identical to LinearHalting, but opposite direction
• CycleStationStart (Inv)
• CycleStationMiddle (Inv)
• Custom
