The Rack Instance Editor is the tool to implement adjustments to racks already added in the scenario. The new rack instances remain scenario specific, so they will not be added to the Common Data. If you want them to be available in the Common Data afterwards, please add these racks accordingly.

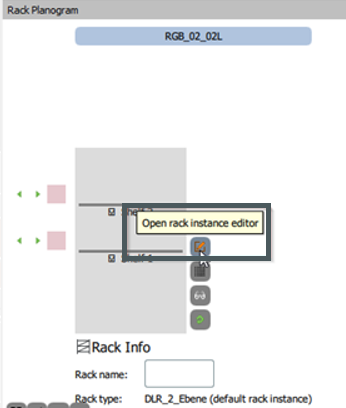

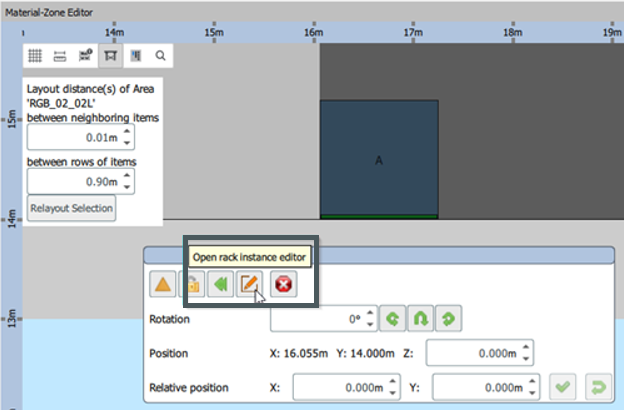

The Rack Instance Editor is available in the Material Zone Editor or in the Rack Planogram after a rack has been selected.
The navigation in the Rack Instance Editor as well as the adjustment of all attributes of the rack is done in the same way as in the Rack Editor from the Common Racks.
|

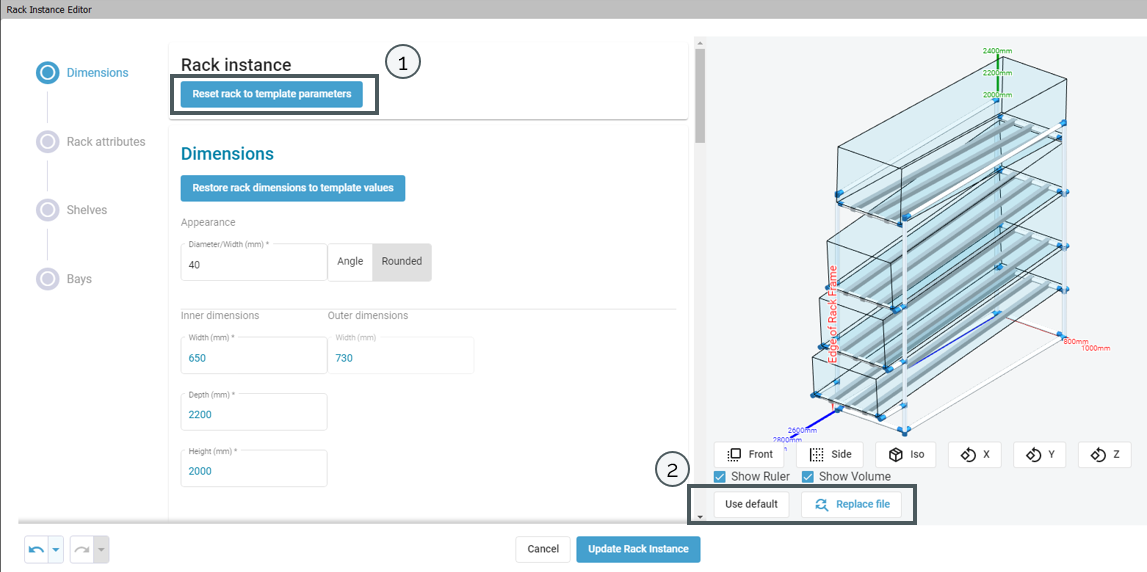

1 |
Reset Buttons |
The adjustment options of the "Modified Racks" can this way be set back equal to the "Default Rack Instance", as well as the entire "Reset Rack to original parameters". See the blue buttons. |
|
2 |
Rack Data |
In addition to the "Replace file" option, a standard geometry can also be used here via "Use default". |
Material Zone Editor

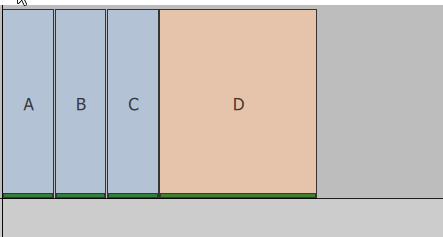

A special feature of the Material Zone Editor is that a "Modified Rack Instance" gets an orange color. More about the Material Zone Editor here.
Rack Planogram
The Rack Planogram is used in the same way as before. Here we have a look at the special features in relation to the Rack Instance Editor. More about the Rack Planogram here.

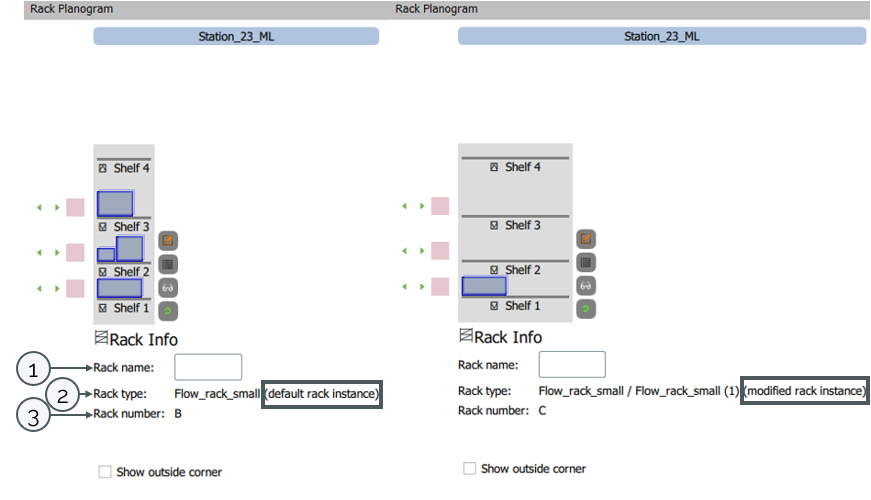

Highlighted on the left is a "Default Rack Instance" and on the right is a "Modified Rack Instance" which means that adjustments have been made to the rack in the Rack Instance Editor in the scenario.
|
1
|
Rack name
|
The rack name can be assigned as usual in the Rack Planogram. |
|
2
|
Rack type
|
The Rack Type is composed as follows: "Template Name / Instance Name" "Template Name" comes from the rack template in the Common Data. "Instance Name" will/may have the same naming as other Rack Instances, although they have different dimensions/parameters. The Rack Type adds to itself, for example with (1), to ensure uniqueness. |
|
3
|
Rack Number
|
The "Rack Number" is the same designation as seen in the Material Zone Editor in 2D.
|
