By defining standard supply chains (SCCs) and standard disposal chains and assigning them via the decision tree, a basis for defining the individual material flows is already given.
In the supply chain, the concrete material areas and the route and trailer for a route transport must now be defined.
In addition, you can manually adjust the means of direct transport and, if necessary, workers for this transport as well as the parameters (for example, replacement quantity or safety stock).
For general orientation in the submodule Process Chain Editor:
1 | This upper table lists all SCCs that have been assigned to the BOM items via the decision tree. You can also see at a single glance how many LOG IDs are assigned to this standard supply chain. |
2 + 3 |

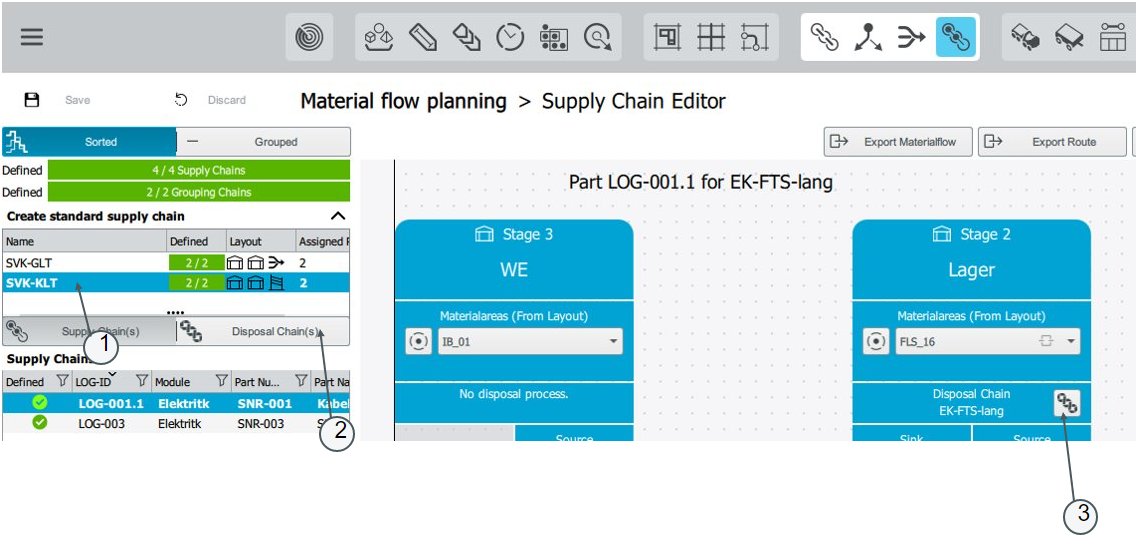

Here you can change the view to the standard disposal chains. These are displayed in the same way as the standard supply chains. |

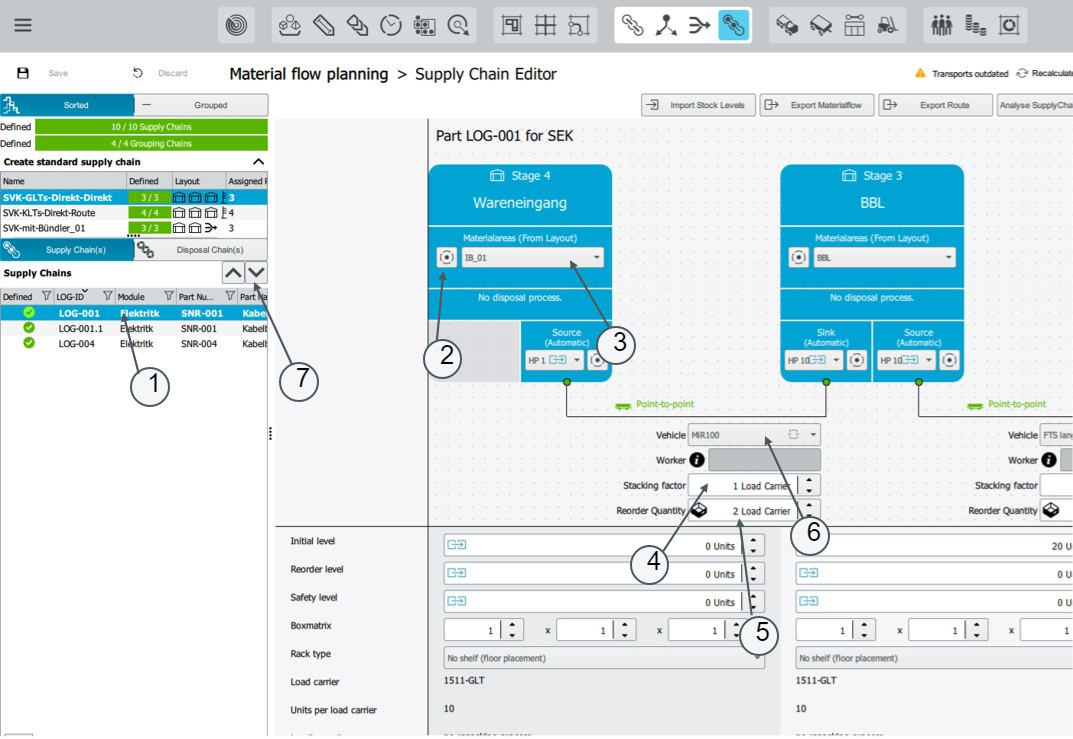

The procedure for defining a BOM item is as follows:
Definition of standard supply chains:
No. | Description | |
1 | Selection of the BOM item |
The icon of a supply chain only changes once it has been completely defined. As soon as this is the case, a green checkmark is set as the icon. Otherwise you will see a red exclamation mark. |
2 | Selection of the material area via the layout |
For this assignment, first click the button (2) of the previous screenshot. Then all potential areas in the layout are highlighted in blue. One of these areas must now be selected for this stage of the selected part number. Alternatively, layout levels can be assigned in the standard supply chains. These are then automatically transferred here. |
3 | Selection of the material area via dropdown |
The dropdown lists all surfaces that have been imported into the software via the "Layout Editor" submodule. If layout levels have been assigned in the standard supply chains, only the material areas of the corresponding levels are available here. If layout levels that are already in use are deleted, the corresponding supply chains are automatically assigned to the top level. |
4 | Stacking Factor (only direct transport) |
In addition to the Reorder quantity, you can also define a stacking factor. This comes as the default value from the LMG and is defined initially when the supply chain is created. The user can overwrite it. If the stacking factor is smaller than the Reorder quantity, two orders are created automatically. Example: Reorder quantity 11, stacking factor 10, two simultaneous orders with 10 containers and 1 container each are created. |
5 | Reorder Quantity |
The reorder quantity of the container defined for this shipment can be defined and changed here. Initially it is one box. |
6 | Selection of means of transport / route |
For direct means of transport, the means of transport is always entered in the supply chain editor, which is also defined in the standard supply chain editor for transport between the relevant levels. However, you can overwrite the automatically assigned direct means of transport manually here. |
In the case of a route transport, the definition of the route and the trailer for the transport takes place between the two stages. When selecting the trailer, ipolog always checks whether the container is too heavy for the selected trailer. If this is the case, a warning message appears. |
||
7 | Expanding part groups |
All part groups can be expanded globally here |
All LGF items are listed on the left side of this Supply Chain Editor view. In this table, all columns from the logistics quantity structure are available for selection and filtering.
The following parameters can be defined in the lower half of the screen:
- Parameters:
- Initial level, Reorder level , Safety level
- Initially, the quantities are set on the basis of certain parameters. You can read about these here.
- Boxmatrix
- Rack type: Initially, "no shelf (floor placement)" is entered in this field. However, this value can be adjusted so that the corresponding containers are placed on shelves. It is also possible to place the containers back on the floor if no placement on the shelf is desired.
Definition of disposal chains:
The definition of disposal chains is analogous.

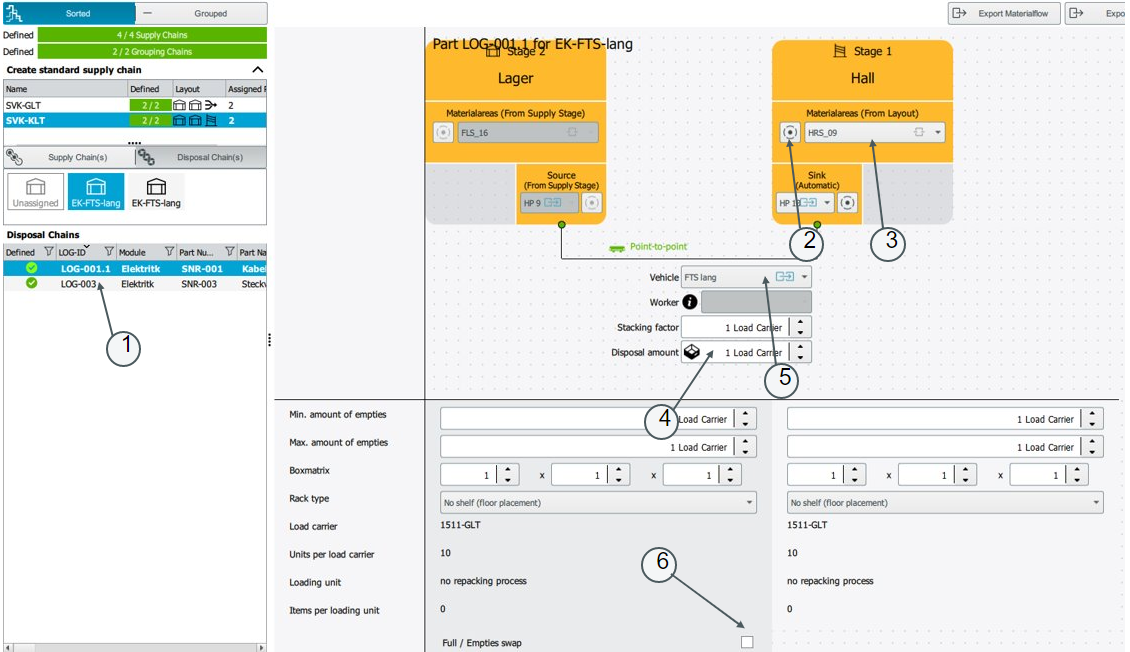

No. | Description | |
1 | Selection of the BOM item |
The icon of a supply chain only changes once it has been completely defined. As soon as this is the case, a green checkmark is set as the icon. Otherwise you will see a red exclamation mark. |
2 | Selection of the material area via the layout |
The material areas are assigned in the same way as for supply chains. However, the material area of the left stage cannot be changed, since it is defined by the last stage of the preceding supply chain. |
3 | Selection of the material area via dropdown |
The assignment of material areas using dropdown is the same as for supply chains. However, the material area of the left stage cannot be changed, since it is defined by the last stage of the preceding supply chain. |
4 | Disposal amount |
The disposal amountof the container defined for this shipment can be defined and changed here. |
5 | Selection of means of transport / route |
The means of transport and the route are determined in the same way as for supply chains. |
6 | Selection of full/Empty swap handling |
In addition to the simple full/empty exchange via the standard supply chain, a full/empty swap can be defined in the disposal chain editor. Important: The same means of transport must be selected as for full supply. Only then is the option available. |
Also in this table, all columns from the logistics quantity structure are available for selection and filtering.
The following parameters can be defined in the lower half of the screen:
- Min. amount of empties
- Max. amount of empties
- Boxmatrix
- Rack type: Initially, "no shelf (floor placement)" is entered in this field. However, this value can be adjusted so that the corresponding containers are placed on shelves. It is also possible to place the containers back on the floor if no placement on the shelf is desired.
Export Materialflow

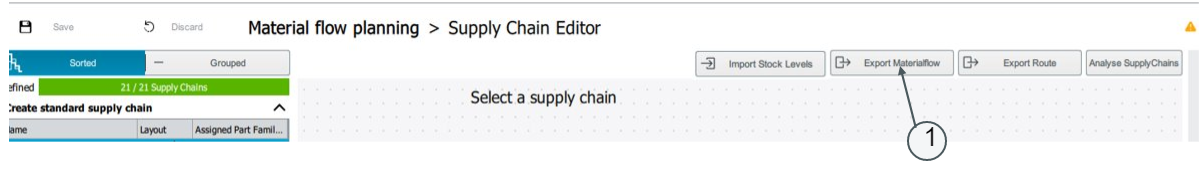

If you want an overview of all material flows defined in the supply chain editor, you can export the material flow (see 1):
All data for all existing stages of the supply and disposal chains are exported. You also get the following three automatically calculated columns:
Description | Calculation |
Average parts stock container sink [h] | Container per day / net working time of the shift plan selected in the production data |
Theoretical maximum line stock [parts | Reorder quantity in parts + reorder level of the sink in parts |
Theoretical maximum line stock [container] | (Reorder quantity in containers + reorder level of the sink in containers) 7 number of parts per container The value is always rounded to the next higher natural number (e.g. 3,45 to 4) |
Export Route
In the supply chain editor, the routes can be exported in order to track which stops are approached in which order (see 1).
During export, an Excel file is created which contains the following data:
- Names of all routes used in the supply chains
- Relevant tugger types assigned to the routes
- Stop numbers
- Type of stop (source or sink)
- Material areas approached
- Approached stopping points
- Transported LOG-IDs
- Part numbers and part names
Note: Only one line is created for transports of empties; the LOG-IDs are not listed.
Analysis of suppl chain parameters

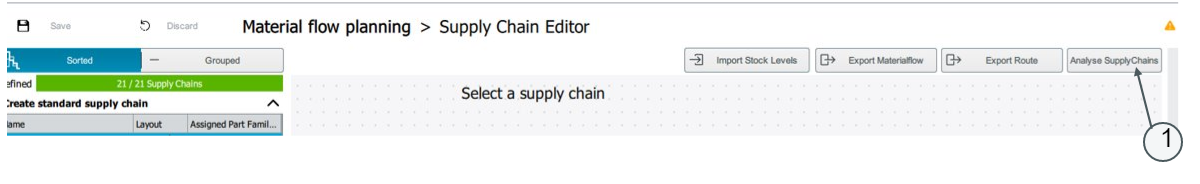

As of release 2020-11, the stored stock levels of the individual supply chains can be analyzed in the supply Editor (see 1):

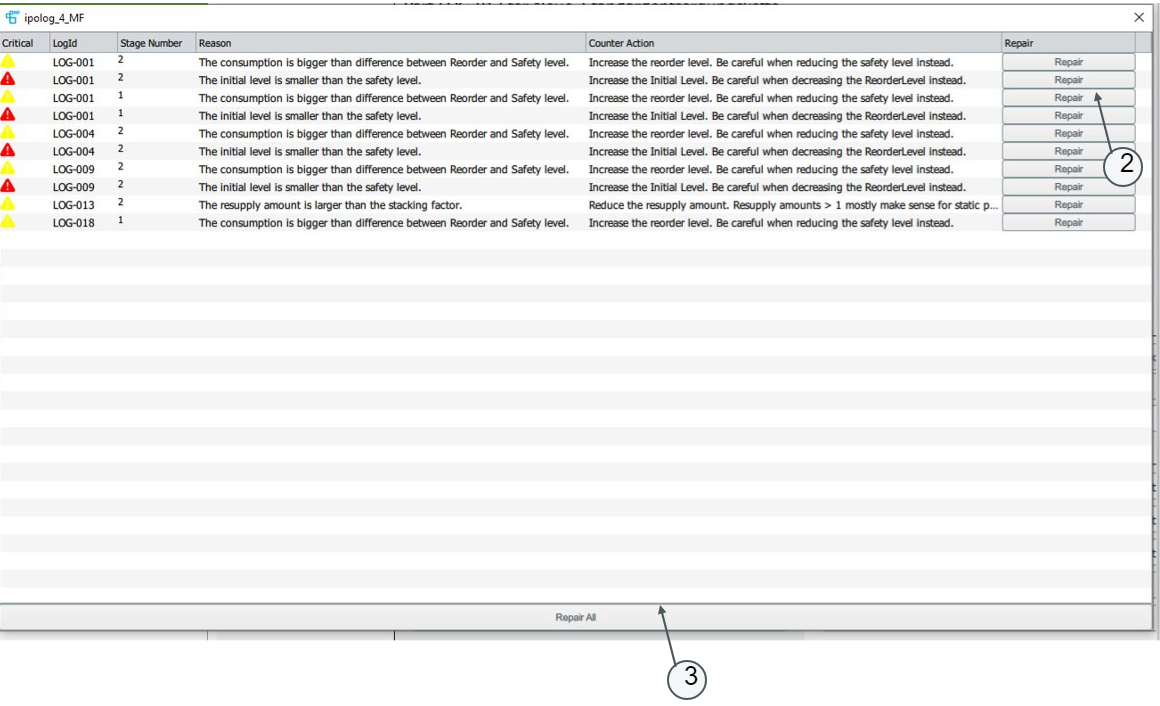

For the analysis a further window opens in which all supply chains are listed that have stored parameters that can lead to problems in the order calculation. The following cases are covered:
- Initial level is lower than the reorder level
- Solution: Set the initiallevel to the reorder level
- Initial level is lower than the safety level (critical)
- Solution: Set the initial level to the reorder level
- Reorder quantity is greater than the stacking factor
- Solution: Reduce the replacement quantity to the stacking factor
- The consumption is greater than the reorder quantity. The consumption is first taken from the LQF via "Parts per product"
- Solution: Increase the reorder quantity by one container until the reorder quantity is at least as large as the consumption
- The reorder quantity is greater than the reorder quantity of the previous stage
- Solution: Increase the reorder quantity until it is at least as large as that of the previous stage.
- Difference between reorder level and safety level is smaller than the consumption
- Solution: Increase the reorder evel by the consumption
- Soltuon: Increase the initial level level to the reorder level
It is possible to repair supply chains individually (see 1) or collectively all at once (see 2).
Import stock levels

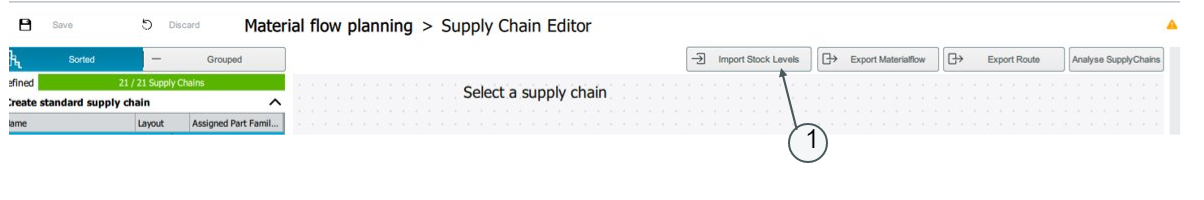

As of release 2020-11, the supply chain editor can be used to import stock and reorder quantities for supply chains (see 1):
Via "Export material flow" (see explanation above) all supply chains are exported with their stock parameters. This file can then be adapted and used to import the stock levels. You can import the initial level, reorder level and safety level. In addition the stacking factor and the box matrix can be imported.
Note: The individual stocks must always be given in whole parts - no decimal numbers are allowed.
Further information about the supply chain - suggestions of the software:
- The user receives a direct proposal for the material area if in the logistics quantity framework in the columns "Material Area 1", "Material Area 2", ... a surface name from the layout is specified. For stage n, the area is displayed that is defined as "material Area n" in the logistics quantity framework for the part number.
- Stopping points are displayed directly to the selected surfaces as soon as the areas for the respective step have been selected. As a prerequisite, however, each material surface must be assigned to at least one breakpoint.
- The default value for reorder quantity and disposal amount is 1.
- The software always suggests 1x1x1 for the matrix of the load carrier/unit.
- The lower fields (load carriers, parts per load carrier, load unit, and parts per load unit) are defined in the logistics quantity framework. Depending on whether a repacking process takes place, for example, "no repacking process" is entered here in conjunction with a 0, or the fields are completely defined when a repacking process takes place.
- If no direct means of transport is entered in the corresponding space for direct means of transport, although this is defined in the standard supply chain, a transport with this means of transport may not be valid due to the restrictions defined in the transport network.
Multiselect in the Supply Chain Editor
For the definition of supply and disposal chains, it is also possible to make assignments using multiselect.
To do this, mark the individual BOM items in the list view. The shift key must also be activated during marking. It is also possible to arrange the log IDs in the list view in ascending or descending order according to the values of the columns. You can also use the Filter icon to filter by specific values.

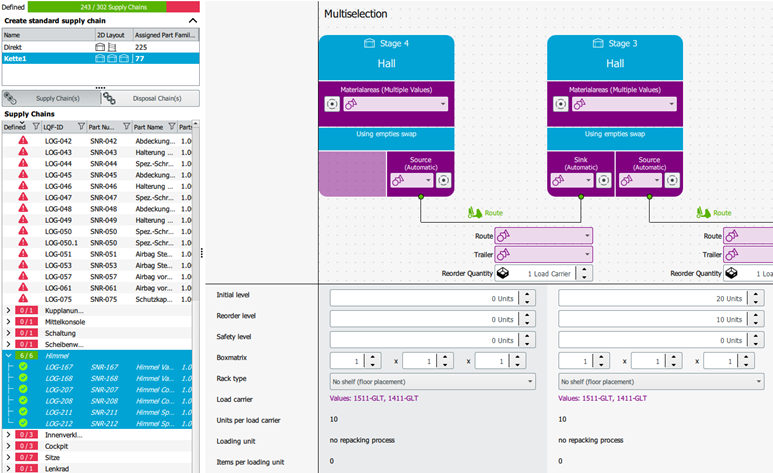

Fields containing different values are highlighted in purple (see screenshot below).
Supply chains:
Disposal chains:

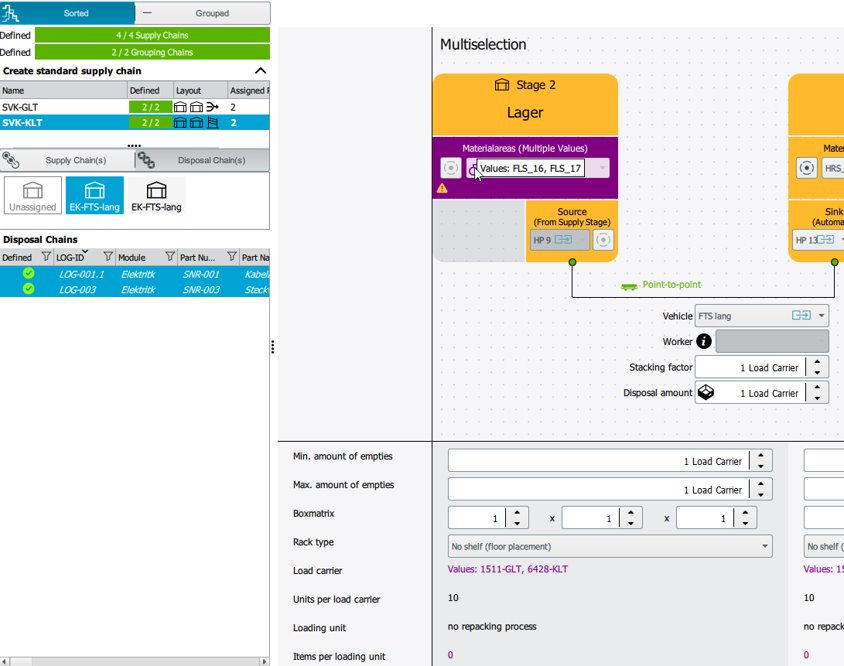

A blue information button appears for each purple area. If the mouse is moved over this button, an information message appears. There all values are listed (in the screenshot the first stage), which are already assigned there with already defined supply chains.
In addition, when selecting a part group, the associated part numbers are highlighted. The visualization is shown in the following screenshot.
With the help of the visualization it is directly recognizable that changes in values of the parts group affect the assigned part numbers. In this case, these are all blue entries that are assigned to the "Gaspedal" part group.
Visualization of the material flow in 2D
The supply chain editor visualizes the material flow from the source stopping point to the sink stopping point in the 2D layout as the linear air route.
The visualization takes place as soon as at least one supply chain is selected from the list of supply chains (blue background).

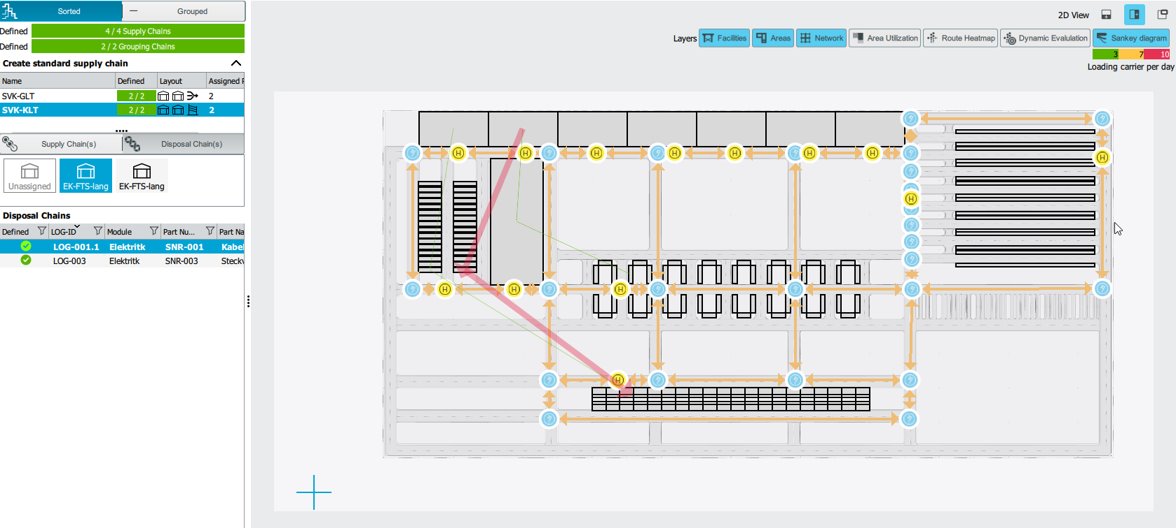

This can look like the following:
