Transfer load carriers & load units from an LQF file to resource management

Load carriers and load units can be imported into ipolog via .jsn files.

If the load units and load carriers for your project are only available in Excel, for example, we offer you the option of converting the table into .jsn files using a macro.

You have already received this during your ipolog training. If you do not have this macro, you can contact our support at any time.

To create the load carriers with the help of the macro, please proceed as follows:

1. Open the macro. The LQF you want to use should be closed.

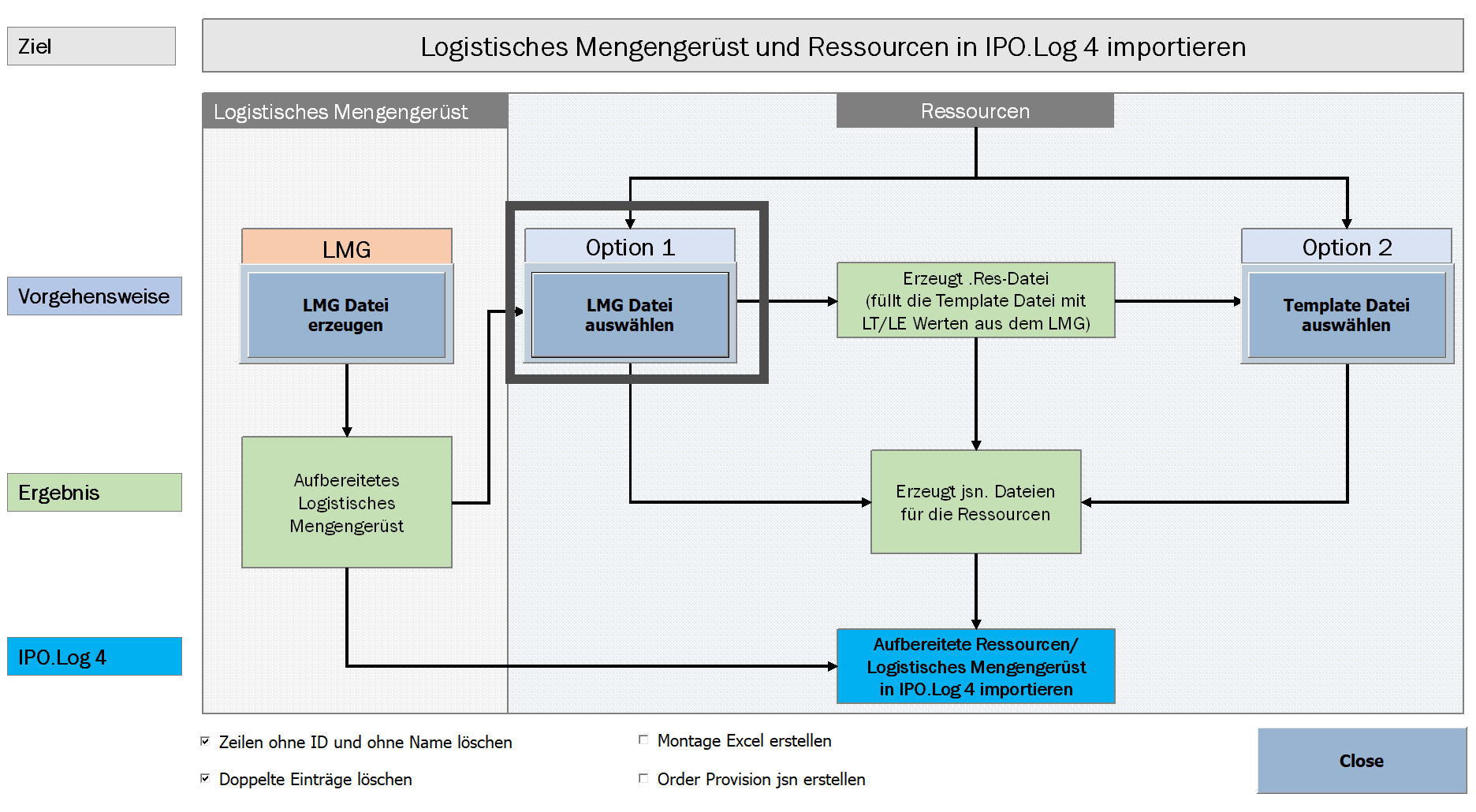

2. Click on "Option 1 - LMG Datei auswählen".
3. A dialog will then open where you can select your LQF file.
4. After the selection please click on the button " Auswählen ".

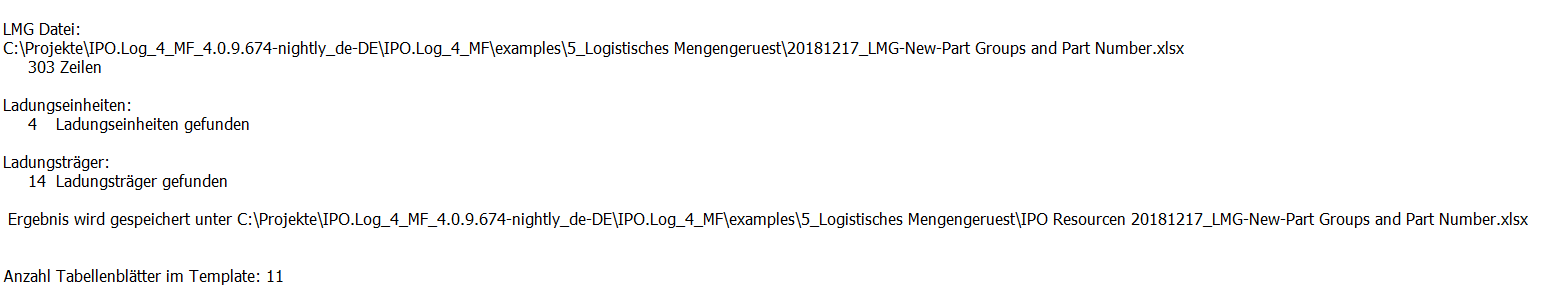

5. In the following view, you receive feedback from the macro as to how many resources (load carriers and load units) have been created. This looks as follows:
6. Then close the macro using the "Close" button.

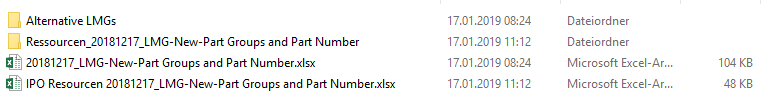

7. In the storage location of your LQF file you will find a folder created by the macro with the name " Ressourcen_...". This folder now contains the resources created by the macro.

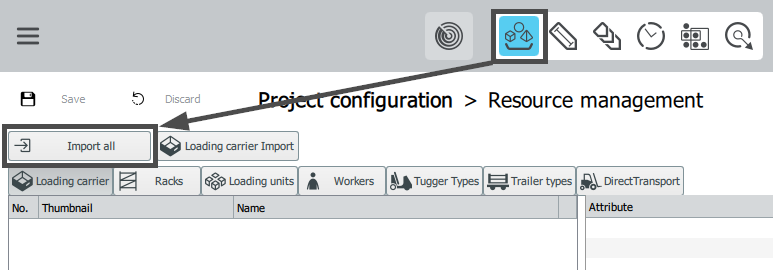

8. Please import the resources created by the macro into the software IPO.Log 4 Material Flow in the submodule resource management.
9. You can then import the LQF into the software.
