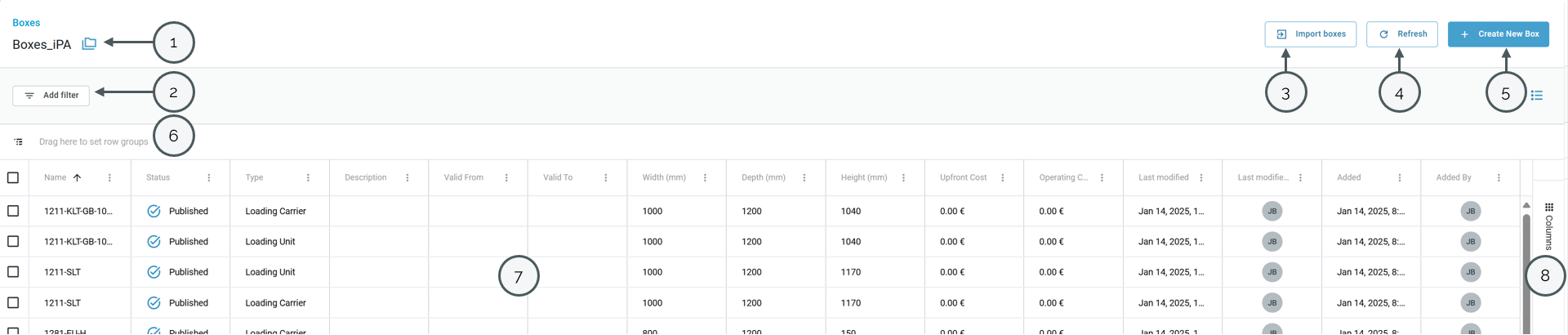

| 1 | Copy path to clipboard |
Copies the path to the selected planning state to the clipboard. |
| 2 | Add filter |
Adds a filter according to your specifications - e.g. by status, load carrier or loading unit, etc. Further information is provided further down in the article. |
| 3 | Import boxes |
This button is used to import boxes. These can be uploaded as a compressed .zip-folder or as a .csv-file. The content of this .zip-folder typically consists of the 3D geometry (as a .gltf- or .iv-file); an associated metafile (.json), in which information about the corresponding container is stored; and optionally thumbnails of the container (.png-file). Also see the example file in the appendix. An example of the .csv-file can be viewed here. Please note: The names of the containers (per load carrier and per loading unit) must be unique. |
| 4 | Refresh | Here you can update the view manually after making changes. |
| 5 | + Create new box | New boxes are created using this button. Further information can be found in this article. |
| 6 | Group attributes |
Column headers can be drag and dropped here, in order to group part data for the corresponding attribute. You can group every column header / attribute - e.g. "Creator". The newly created column "Group" now lists part data sorted together by their creator. The number in parenthesis' behind the creators name is the amount of Log-IDs which have been grouped. Selecting the "Arrow"-symbol opens the detail view for this row. |
| 7 | Table |
The boxes currently available in the planning state are displayed here, with applied filters. Left-clicking a box will open the box editor dialogue. A single right-click opens the options for the respective rack: Copy name, export or delete. A single left-click on a column title sorts the racks according to the respective attribute - first in ascending order and then in descending order with a second click. Hold down the left mouse button and drag a column header to another position to adjust the sorting. A single click with the left mouse button on the "three dots"-symbol opens additional options: The first two options “Sort ascending” and “Sort descending” also allow you to sort your column in ascending or descending order. With “Pin column” you can pin a column to the left or right of the editing area - the column then stays in place on the screen as you scroll. With “Autosize this/all columns”, you can automatically adjust the column width of the currently selected column or all columns. “Group by Log ID Name” groups the part data according to their Log-ID and “Choose/Reset Columns” allows you to show or hide individual columns and reset the overall view - similar to the “Columns” feature itself. The column width can be adjusted by clicking on the separator line between columns and moving the line to the left and right with the mouse. Clicking on the “x” symbol next to the column names resets the corresponding column to its original width. |
| 8 | Columns | "Columns" enables you to hide/show individual columns by selecting the check mark next to it. Via the filter on the top of the columns window ("Search...") it is possible to search for the columns by name. |
Pending changes
Changes made can be accepted and validated for the scenario via “Pending changes”. Only synchronized planning states can be used when creating scenarios. Likewise, changes must first be validated before they are available for use in the scenario.
Filter
To create a filter, first select an attribute from the list on the left-hand side. Then select the filter criterion - this can be “Contains”, “Is equal to”, “Starts with...”, “Ends with...”, “Greater than...”, “Greater than or equal to”, “Less than...” or “Less than or equal to”. Finally, enter a filter value to filter by.
Editing multiple racks at once

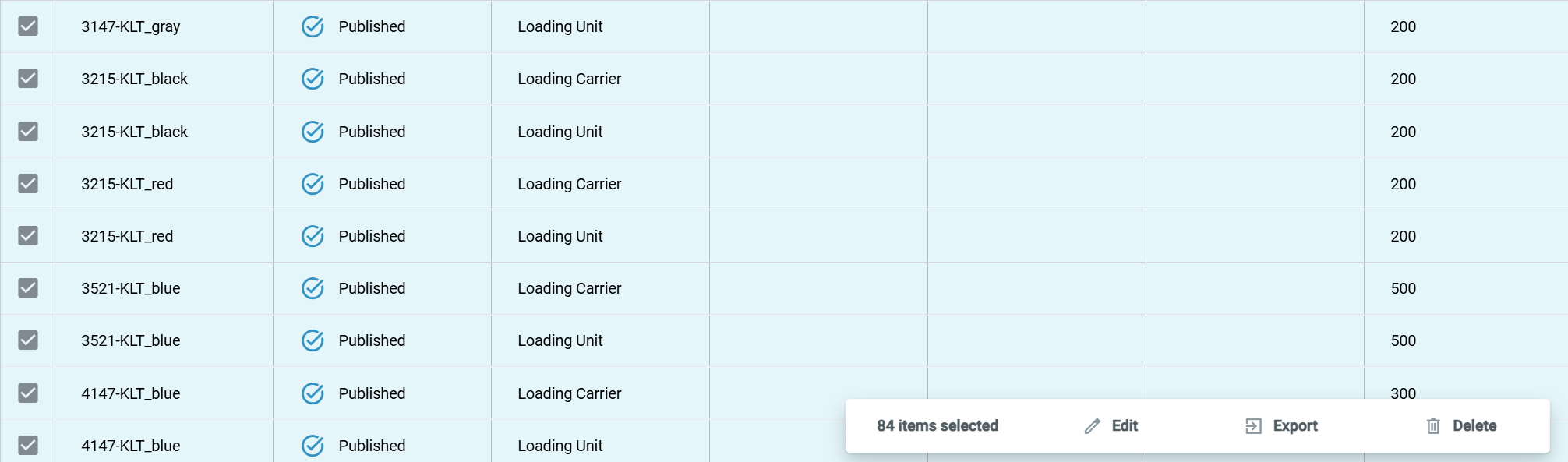

To edit multiple entries in your part data, first select the desired entries via the checkbox and then "edit":
You can also export multiple racks at once via "Export" or delete them via "Delete".
