ipolog 4 Workspace: Graphics error in 3D view

If an incorrect font isdisplayed in the 3D view of ipolog 4 Workspace, the cause may lie in the graphics settings.

First check whether your graphics drivers are all up-to-date. If this does not solve the problem, follow the instructions below (Windows 11):

1. Open the folder in which you have installed ipolog 4 Workspace

2. Navigate to the file “ipolog_4_WS.exe”

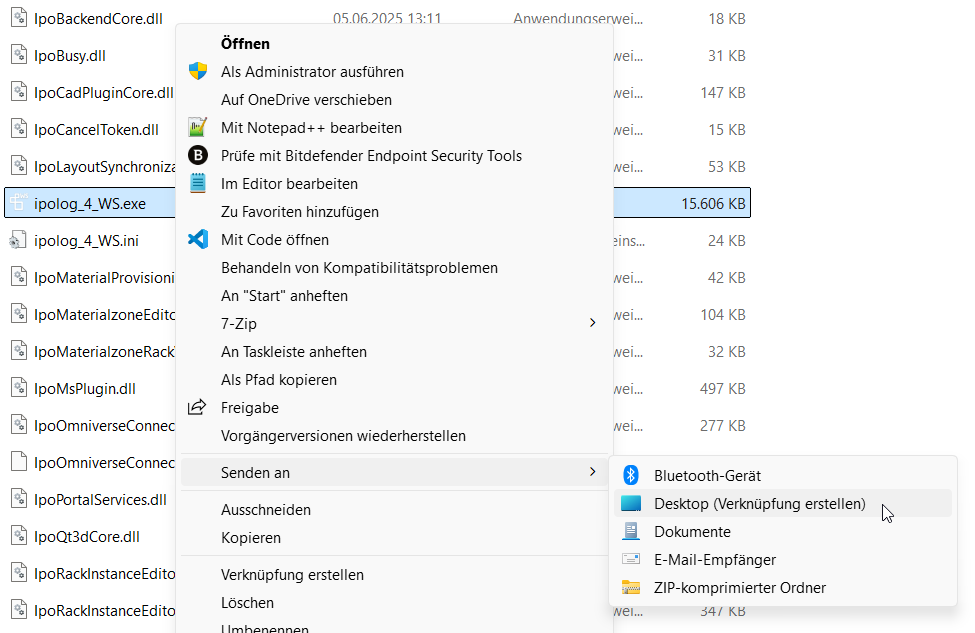

3. Right-click on the file and then “Show more options”

4. “Send to” > “Desktop (Create Shortcut)”:

5. Navigate to the shortcut that was created on the desktop. This should be called “ipolog_4_WS.exe - Shortcut”

6. Right-click on the file and then “Properties”

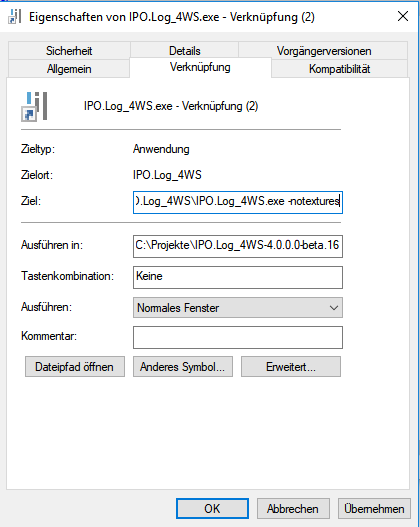

7. Enter “-notextures” after the path to ipolog in the “Target” field:

Then select “Apply” and start ipolog as usual.
