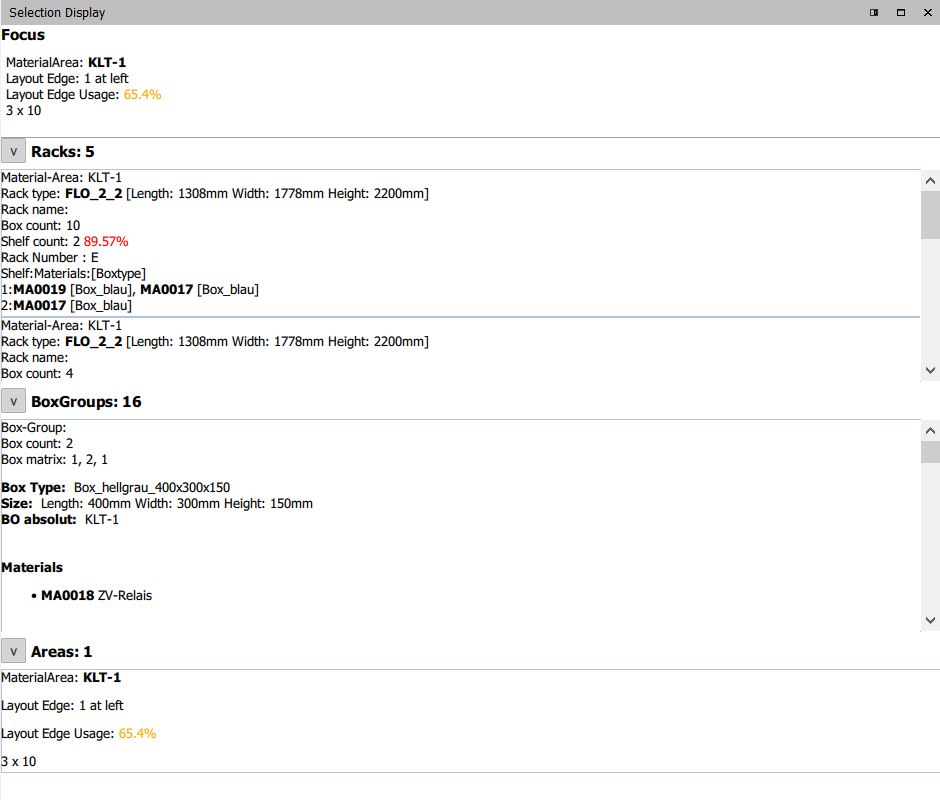

Selection Display

In the Selection Display you can click on a box, a shelf or an area to get different information.

Note: With Ctrl a multiselect is possible in the layout of shelves, areas and boxes.

Under "Focus" information is shown about what is hovered over with the mouse. Depending on the selection, different parameters are displayed in this area.

Under "Racks", information is shown such as the Material Area, the Rack name, the shelf levels, the box count, the materials in the boxes, and the rack number.

The "BoxGroups" section shows the box matrix, the box type, the size of the box, and the material in the box.

The "Areas" section shows the material area, the layout edge, and the layout edge usage
